Load and Analyze Performance Metrics

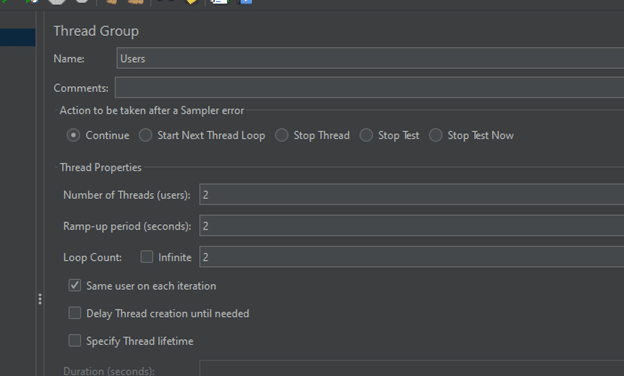

A Thread Group in JMeter defines the number of users (threads), the ramp-up time, and the number of iterations or loops for the test. Here’s how to create one:
1. Right click on the Test Plan
- Add
- Threads
- Thread Group
2. Configure the number of threads and ramp-up time. Ramp-up time is the time which measures the time JMeter will take to start all the threads.
Advanced Thread Group Methods

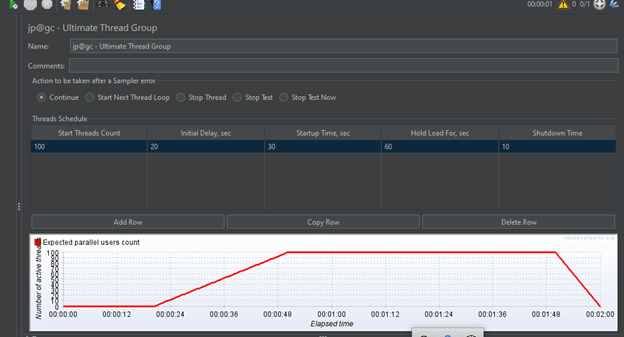

1) Ultimate Thread Group
The Ultimate Thread Group allows us to define complex load patterns with different user ramp-up times, hold times, and shutdown times. It is designed for more granular control over the load testing process.

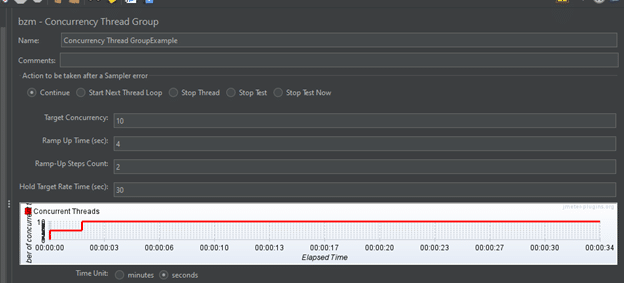

2) Concurrency Thread Group
The Concurrency Thread Group focuses on maintaining a constant number of concurrent users while simulating a real-world scenario.

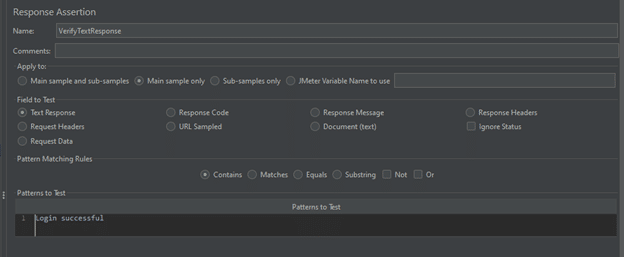

Assertions:
- Validate response text, response code, response message, or headers.
- Can assert partial or full matches of text/regular expressions.
Usage Example: You want to check if the response contains the word “success”. You can add a Response Assertion to the HTTP Request sampler, select the “Response Text” field, and add “success” to the pattern.
Configurations:
- Pattern Matching Rules: Contains
- Matches
- Equals
- Substring
- Field to Test

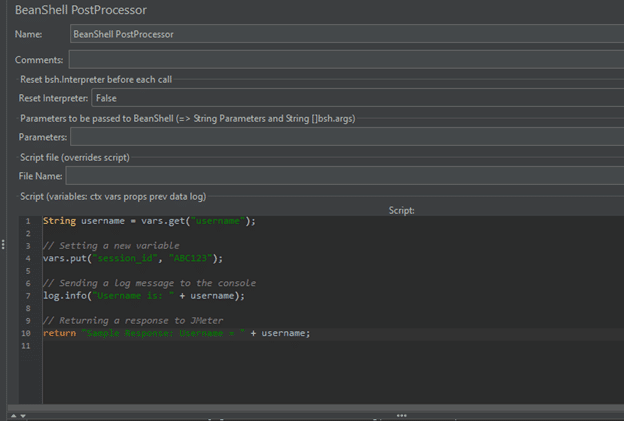

Beanshell
Beanshell in JMeter is a powerful feature that allows you to execute dynamic and custom logic during your test execution using a lightweight Java-like scripting language called BeanShell
Timers in Jmeter
Timers in JMeter are essential for controlling the pace of requests made to the server during a test. By default, JMeter sends requests without any delays between them, which isn’t realistic for simulating real user behavior. Timers allow you to introduce pauses (or think times) between requests to better simulate user interactions and create more realistic load scenarios.
These two timers we majorly use i.e ;
1) Constant Timer
In real life, users typically take time between actions like navigating pages, filling out forms, etc. The Constant Timer allows us to add pause, simulating this “think time” in the test.
Good to Read:- How to Create Test Plan in Jmeter?| Test Plan in Jmeter
2) Gaussian Random Timer
Normal Distribution of Delays: Delays are generated using a Gaussian distribution, with most delays close to the mean value.
Two Configurable Parameters:
- Deviation: Controls how much the delay varies around the mean.
- Constant Delay Offset: Defines the base (minimum) delay added to the Gaussian random delay.
Controllers for Modules Wise Metrics
In JMeter, controllers help to manage the flow of the test plan and organize the execution of requests. They allow testers to design complex testing scenarios by controlling the order, iteration, and conditions under which test elements are executed There are two main controllers which we use in jmeter : –

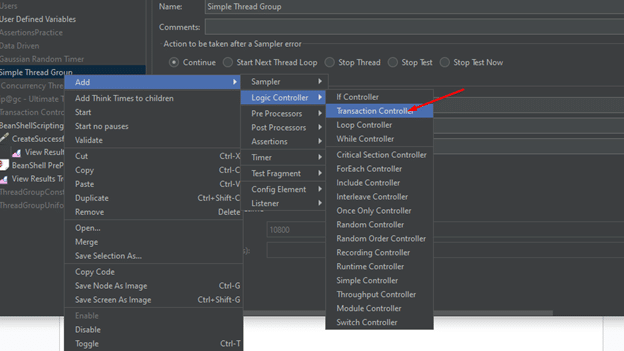

1) Transaction Controller
It Measures the time taken by all the requests as a single transaction. it is Useful for reporting the overall time for a series of requests.

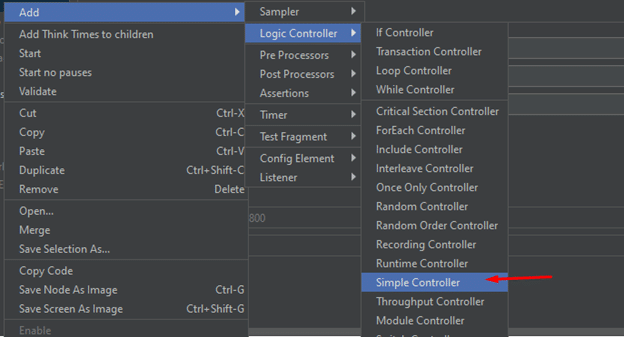

2) Simple Controller
- Groups requests or samplers together.
- Does not influence execution behavior directly.
- Useful for organizing your test plan.

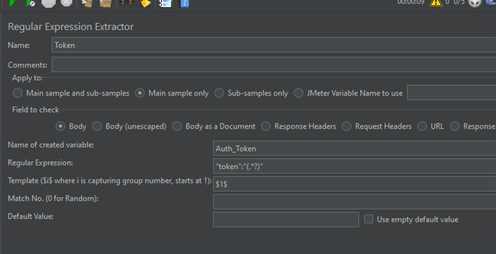

Importance of Regular Expression
Regular expressions (regex) play a critical role in JMeter for handling dynamic data, extracting values, and applying assertions. They help in parsing responses, parameterizing requests, and validating the correctness of response content. In below Screenshot Token value is getting extracted
In JMeter, the HTTP Cookie Manager is essential for managing and simulating how a browser handles cookies during a test. Cookies are used in web applications to maintain sessions and track user state, such as authentication and other session-related information. The HTTP Cookie Manager helps capture and reuse these cookies, ensuring that your test plan accurately mimics real-world browser behavior.
Good to Read:- API Performance Testing Using Jmeter | Jmeter Api Testing
Importance of HTTP Cookie Manager in Capturing Sessions
- Session Management
- Handling Multiple User Sessions
- Automatic Cookie Storage and Replay
- Managing Cookies Across Multiple Domains
Frequently Asked Questions About Load and Performance Testing with JMeter
1. What is JMeter used for in performance testing?
Apache JMeter is an open-source testing tool commonly used to perform load, stress, and performance testing of web applications, APIs, and other services. It helps testers simulate multiple users and analyze how an application performs under different workloads.
2. How do I create a Thread Group in JMeter?
To create a Thread Group, right-click on the Test Plan, select Add → Threads → Thread Group. You can then configure the number of users or threads, ramp-up time, and loop count according to your performance testing requirements.
3. What is ramp-up time in JMeter?
Ramp-up time defines how long JMeter takes to start all configured threads. For example, if you configure 100 users with a 50-second ramp-up time, JMeter gradually starts the users during that period instead of starting everyone simultaneously.
4. What is the difference between Ultimate Thread Group and Concurrency Thread Group?
The Ultimate Thread Group provides more granular control over complex load patterns, including user ramp-up, hold, and shutdown periods. The Concurrency Thread Group is primarily used when you want to maintain a specific number of concurrent users during a performance test.
5. Why are Timers used in JMeter?
Timers introduce delays between requests to simulate realistic user behavior. Without timers, JMeter may send requests continuously without any pause, which may not accurately represent how real users interact with an application.
6. What is the purpose of a Transaction Controller in JMeter?
A Transaction Controller groups multiple requests and measures their overall execution time as a single transaction. It is useful when you want to understand the total response time of a complete business workflow rather than analyzing individual requests separately.
7. How are Assertions used in JMeter?
Assertions help verify whether a server response meets the expected conditions. For example, you can validate response text, response codes, messages, or headers to determine whether a request has produced the expected result.
8. Why are Regular Expressions important in JMeter?
Regular Expressions are useful for extracting dynamic values from server responses and reusing them in subsequent requests. They can also help testers handle dynamic data, parameterize requests, and validate response content during performance testing.
9. What is the role of the HTTP Cookie Manager in JMeter?
The HTTP Cookie Manager helps JMeter manage cookies and maintain user sessions during testing. It is useful for simulating realistic browser behavior, particularly when testing applications that require authentication or session-based interactions.
10. How can JMeter help analyze application performance?
JMeter can help testers evaluate how an application behaves under different workloads by measuring performance-related results such as response times, throughput, errors, and request execution behavior. These insights can help identify potential performance bottlenecks and areas that require optimization.
11. Can JMeter simulate real-world user behavior?
Yes. JMeter can simulate realistic user behavior by combining Thread Groups, Timers, Controllers, Assertions, and session management features. Using appropriate delays and load patterns can make performance test scenarios more representative of actual user activity.
12. What should I consider when creating a JMeter performance test plan?
A good JMeter test plan should define realistic user loads, ramp-up patterns, test duration, user think time, business workflows, validation rules, and session handling. It is also important to monitor test results and application resources to identify performance bottlenecks accurately.
