Devtools (Chrome Developer Tool)  is a powerful set of tools that helps web developers to build better applications.

In this blog, we will learn about Recorder Panel.

First, you need to open Devtools. To do this first you need to Press F12 or Rights Click – Inspect.

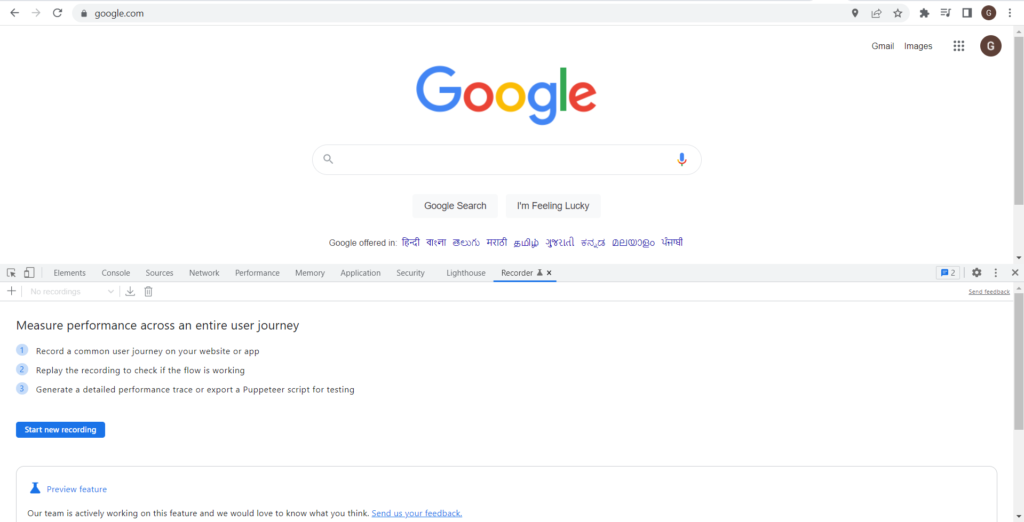

Now you can click on Recorder. If you are not able to see recorder options in Devtools, then click on three dots from Devtools – More Tools – Recorder. Below is the screenshot of what this chrome recorder looks like.

What Exactly Does This Recorder Panel Does?

This recorder is used for multi-purposes:-

• 1. Record all actions that the user performs
  2. You can download this recording
  3. You can replay this recording
  4. You can inject certain steps within the recording of how exactly it will be if we make changes
  5. You can measure the performance of each step
  6. You can export the puppeteer (node JS) script

Let’s See How The Google Chrome Recorder Works?

1. Click On the Start New Recording button and enter the recording name Ex – TestScript
2. Click On the Start New Recording Red Circle button
3. Perform a Few Actions on the website like Opening the URL, Entering Data, and clicking any button
4. Once Actions are performed, then click on the End Recording button. This will save our recorded action in “Test Script”
5. Now you can export your recorded script. It will be in NodeJS and then you can embed it into any application.

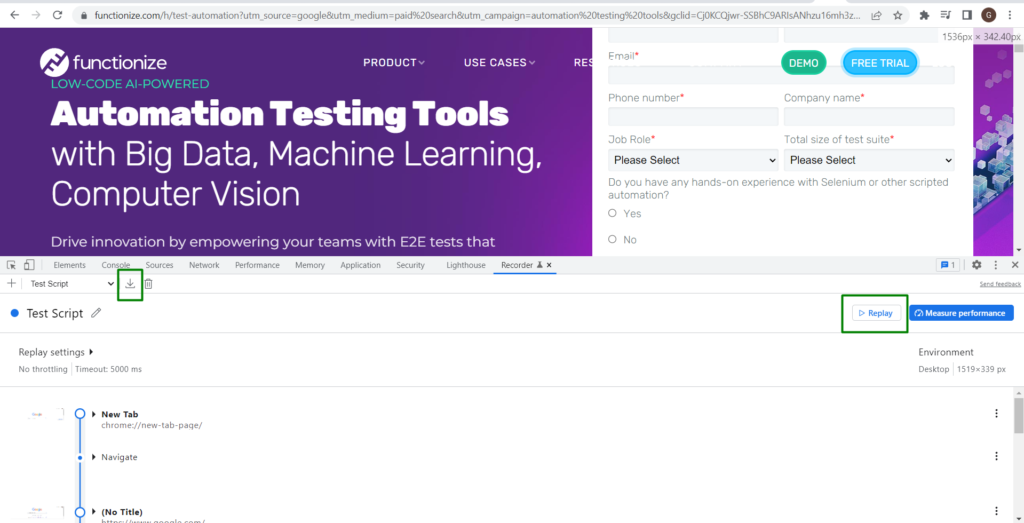

6. You can replay the recording to see all your recorded actions

While replaying the test script, you can change locators for any step, you can add assertions or can add a timeout, etc.

How to Change Selector in Your Recorded Script?

1. Click On the Arrow icon in your test script for that action
2. Then click on the element on which you want to perform this action
3. The selector will automatically get filled in your test script for that element

How do Add Assertions in Recorded Test Script?

Suppose we need to verify that the count displayed on the page should be 6.

Follow the below steps For Assertion:

• # Click on Three dots and add that step where you need to perform the assertion

* type: wait for element
* selector: {You can add locator on your own}
* operator: == {Click on Add Operator button}
* count: 6 {Click on Add Count Button}



The above Step will help you to achieve assertion in your test script

Read Also:- Tutorial On Cucumber Automation Tool

Common Selector/Locators Used:

1. data-testid
2. data-test
3. data-qa
4. data-cy
5. data-test-id
6. data-qa-id
7. data-testing

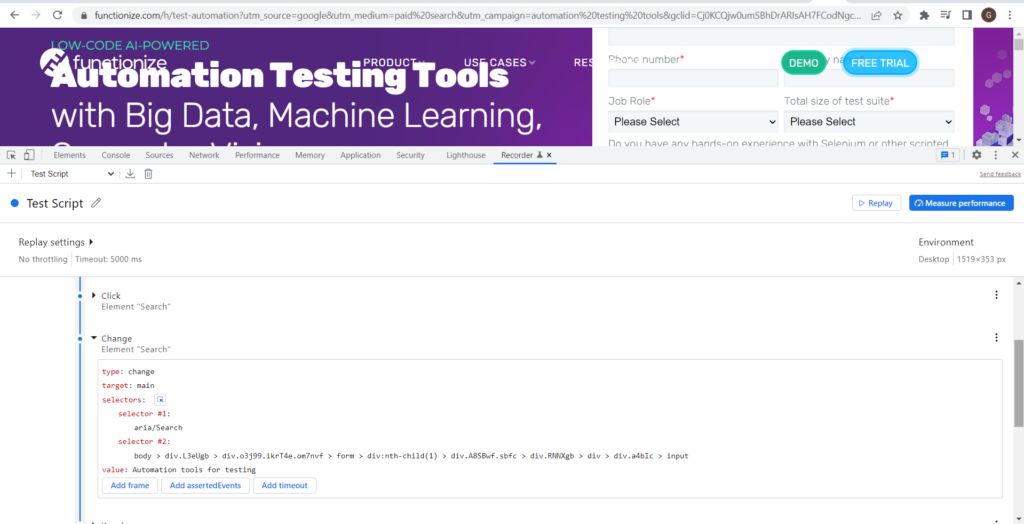

In Below Screenshot you can see we have a selector for the search element and there we are entering some value

The best part is we can measure the performance of my entire recording. Click On the Measure Performance button and then see what’s the outcome

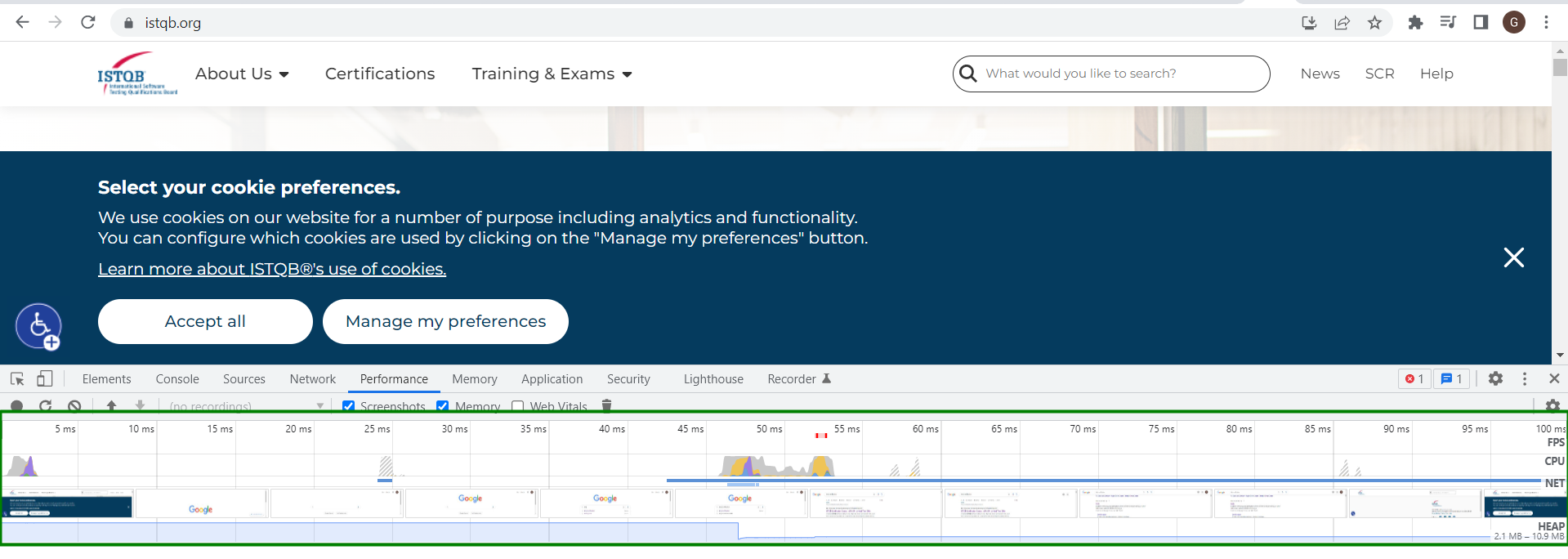

Once we click on the Performance measure button, then it will replay your recorded script. Once script execution is done, then it will redirect us to the Performance tab in Devtools

Every Action has been recorded for his performance. Like how much it is taking for the CPU, where it is taking more time etc.

Now we will record some actions and then download the Puppeteer file for those recorded actions.

Read Also:- Read & Write Data Using Apache POI – JAVA

Actions Performed in Script

1. Navigate To google.com
2. Click on Search Field
3. Enter “ISTQB certification”
4. Press Enter Button
5. Key Up to go to ISTQB Link
6. Click On the ISTQB link
7. It redirects to Page – https://www.istqb.org

Recorded all these actions through Chrome Recorder. Now Click on Export Icon From Recorded Tab. It will export the puppeteer script

You can find the puppeteer script in the link below. The link is public so you can download it easily

https://drive.google.com/file/d/1FXJNE_x14U6Q9IzeTGAMMraizEDPJAF_/view?usp=sharing

How To Run Puppeteer Script for CLI?

Puppeteer is a Node JS library maintained by Google and used for web scraping

Prerequisites are:

1. Node JS
2. npm

Now Install the Puppeteer library in your project. Run this command in terminal

npm install puppeteer

Now run your test from terminal

node {{test file name}}

In our case the name of the file is TestScript.js. So, we need to run the command

node TestScript.js

The test will be executed and by default puppeteer will run the script in headless mode

If we want to see Script execution on User Interface, then you need to edit the JS script

In the Sample TestScript.JS file, you can see Line No 4:

const browser = await puppeteer.launch();

Just here we need to add an argument here. Change this line to:

const browser = await puppeteer.launch({headless: false});

Save this file and run it again to see script execution on User Interface

FAQs

• What is Recorder in chrome developer tools?

You can record the checkout sequence once and measure it repeatedly using the Recorder panel. The user flow will be replayed when you click the Measure performance button, and the Performance panel’s performance trace will then be displayed. Learn how to use the Performance panel to evaluate the runtime performance of your page.

• How do I use chrome as a Recorder?

Select the dev tools recorder panel.

Launch the chrome developer tools recorder. Select Recorder from the More options > More tools menu. You can also access the chrome dev tools recorder panel via the Command Menu.

• Does chrome have a Recorder?

Chrome addon for capturing video from the screen or the camera (desktop, specific application window, or Chrome tab). Free to use No registration needed No watermarks Unlimited video recording New features include auto-saving videos and recovering recordings after crashes.

• Can puppeteers record videos?

A puppeteer opens the dev tools plugin that chrome action recorder video frame-by-frame using the native Chrome dev tool interface. Additionally allows the choice to follow pages that the current page object opens.

• What is the disadvantage of a puppeteer?

One tool may not be the answer for all problems because the complexity and automation environment are evolving daily. puppeteer recorder has various restrictions, such as the fact that it only supports Chrome. Puppeteer for Firefox is still under development.
